PV Series Vibratory Plate and Pile Driver for Excavators

How a vibratory plate for excavators works

A vibratory plate for excavators works according to the principle of dynamic compaction. The vibrating unit generates high-frequency oscillations that are transmitted to the plate and then to the ground. The effect of the vibrations reduces the voids between the particles of the material, encouraging greater compaction of the base. The result is a more stable surface, less prone to subsidence and better suited to supporting subsequent loads. For this reason, compaction is a fundamental phase after excavation, installation of underground utilities, backfilling, preparation of light foundations and road reinstatement works.

Unlike a manual vibratory plate compactor, the excavator-mounted solution allows operators to work with greater force, more precision and better operational control, especially in situations where depth, confined spaces or slopes make the use of traditional equipment difficult.

Vibratory plate, vibratory compactor and pile driver: operational differences

On job sites, terms such as vibratory compactor, plate compactor, compactor or vibratory plate are often used. These terms are closely related, but they do not always refer to the same type of equipment. A manual compactor is mainly used for small jobs, paving, gardens, pedestrian areas or localized reinstatement works. A hydraulic vibratory plate for excavators, on the other hand, is designed for heavier-duty applications where greater impact force, control from the cab and the ability to reach difficult areas are required.

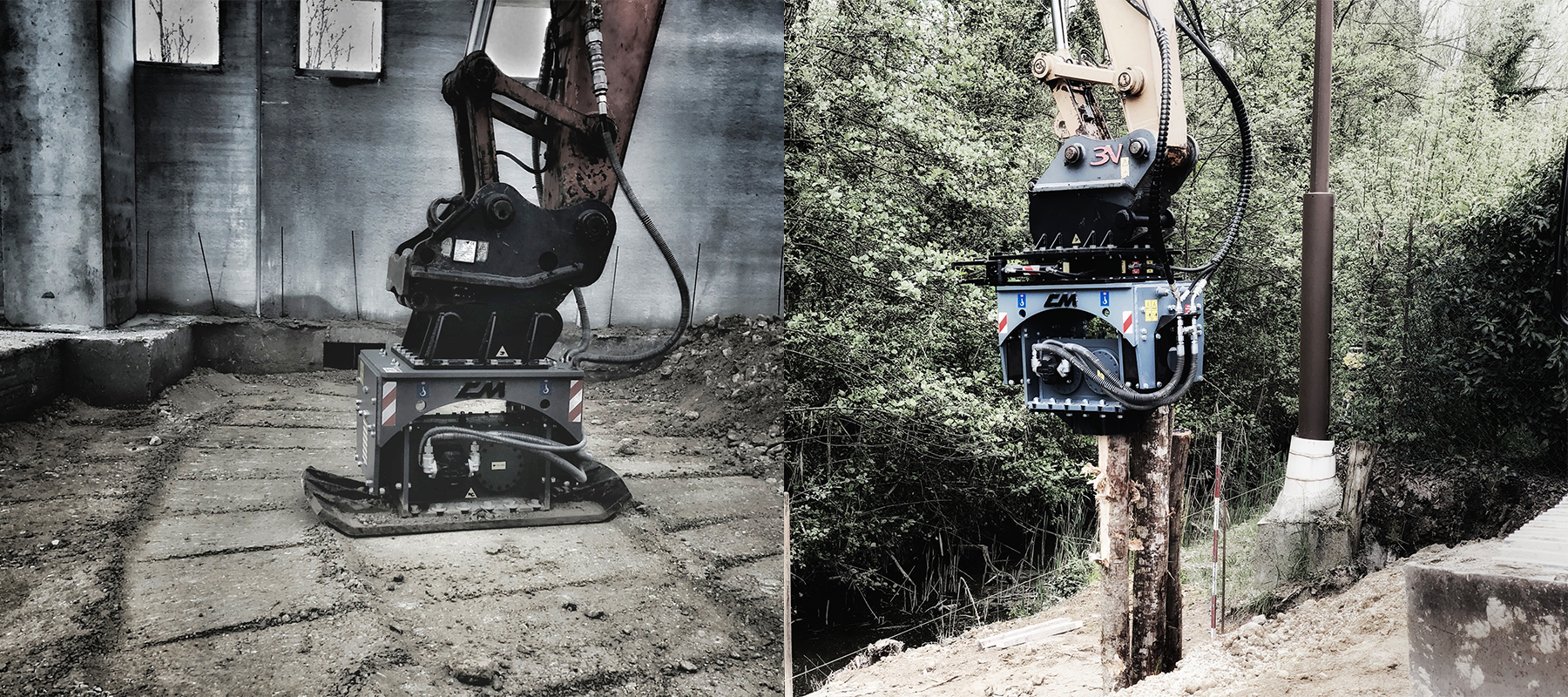

The PV series adds a further advantage: with the dedicated optional kits, it can also work as a pile driver. This means that the same attachment can be used both to compact the ground and to position and drive posts, reducing the need to use different machines on the same job site.

Vibratory plate for paving blocks: what changes compared to professional excavator-mounted use

Searches for a vibratory plate for paving blocks often refer to outdoor paving work, installation of concrete pavers, driveways, courtyards and pedestrian surfaces. In these cases, lighter plates are used, often manual models designed to compact the bedding layer and stabilize the paving elements.

The PV series vibratory plate belongs to a different category: it is an excavator attachment designed for more intensive work and for bases that require higher compaction force. It does not replace a small manual plate for finishing paving blocks, but responds to professional job site needs such as compaction after excavation, trench consolidation and preparation of technical bases.

This distinction is important because it helps identify the correct equipment: for light jobs and surface finishing, a manual plate may be sufficient; for job sites, excavations, underground utilities and heavy-duty work, a hydraulic vibratory plate mounted on an excavator is more suitable.

Vibratory plate for asphalt: when it is used

A vibratory plate for asphalt is generally associated with road reinstatement, road maintenance and surface compaction after localized interventions. In the case of the PV series, the most relevant application concerns the preparation and consolidation of the base before or after excavation works, especially when it is necessary to obtain a stable foundation for subsequent layers of material. In road applications, compaction is crucial because an inadequately consolidated base can cause subsidence, depressions and premature deterioration of the surface. Using a hydraulic vibratory plate allows controlled-force operation, even in points that are difficult to reach with rollers or manual plates.

To complete the roadwork cycle, CM also offers related attachments such as road milling attachments, useful for the controlled removal of asphalt, concrete and paving, and sweepers, ideal for the final cleaning of roads, yards and job site areas.

Pile driver mode: one attachment for compacting and driving posts

One of the strengths of the PV series is the possibility of transforming the vibratory plate into a pile driver thanks to the dedicated optional kits. This configuration makes it possible to position and drive posts for fences, embankments, vineyards, orchards and agricultural work.

The post-grab clamp allows the post to be gripped and held in position during operation, while the post-centering kit helps guide the driving process in a more controlled way. Continuous 360° hydraulic rotation makes it easier to position the attachment, especially in the presence of corners, narrow spaces or difficult-to-access ground. This versatility makes the PV series particularly interesting for companies operating in several fields: construction, maintenance, agriculture, landscaping, roadworks and underground utility projects.

How to choose the most suitable vibratory plate for excavators

The choice of a vibratory plate for excavators should not be based only on plate size, but on a set of technical and operational parameters. The first element to consider is the weight of the operating machine: the PV series includes models for excavators from 1 to 30 tonnes, covering different working requirements. Other key aspects include centrifugal force, vibration frequency, required hydraulic flow rate, operating pressure and plate size. A correctly sized machine works better, reduces stress on the excavator and ensures more effective compaction.

In general, more compact models with medium impact force and a single eccentric are used for mini and midi excavators. For larger excavators, the range moves to versions with a double eccentric, designed to generate higher compaction force.

Why choose the CM PV series vibratory plate and pile driver

CM Srl designs and manufactures attachments for earthmoving machines intended for job sites, roadworks, construction, recycling, maintenance and agricultural applications. The PV series fits into this range as a solution for compaction and post driving, designed for those looking for a durable, practical attachment suitable for professional use. The main strengths of the PV series include oil-bath bearings, simple and fast maintenance, a high-impact-resistant wear-resistant coating, a check valve and bolted rubber vibrators. The striking plate and, in the pile driver version, the post-centering device are bolted, making replacement, configuration and maintenance operations faster.

The possibility of configuring the machine according to the type of excavator and the application makes the PV series a suitable choice for companies that want to increase operational efficiency on site without compromising on strength.

Related CM attachments for job sites

The PV series vibratory plate can be integrated into a wider attachment fleet, together with other CM solutions dedicated to job site preparation, management and cleaning. For material reduction and recovery operations, it is possible to consider attachments for crushing and screening. For road reinstatement and cleaning of operating areas, road milling attachments and sweeper buckets can also be useful.

Choosing the correct vibratory plate depends on the type of excavator, the ground, the application and the optional kits required. To identify the most suitable model and receive a technical assessment, contact CM Srl: the team will support you in choosing the most effective configuration for your job site.
